swithches, gateways & routers
INDUSTRIAL ETHERNET SWITCHES
Offer a variety of industrial Ethernet switches, including industrial-grade network switches, DIN mount switches, and Ethernet switchboards, that can perform efficiently in adverse weather conditions and industrial environments. Our solutions allow for a seamless transmission and performance of data. We also offer M12 Ethernet switches which are ideal for applications with high shock and vibration, such as the rail industry.
-ae30390.png/:/cr=t:22.97%25,l:0%25,w:100%25,h:54.06%25/rs=w:360,h:270.6766917293233,cg:true)
INDUSTRIAL MANAGED 10/100TX ETHERNET SWTICHES
- Network Broadcast Storm Protection
- Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Single-Mode SC Fiber Ports
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
- DIN-Rail and Wall Mount Support

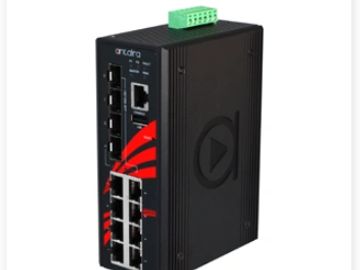

INDUSTRIAL UNMANAGED ETHERNET SWTICHES
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 60Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Bult-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°C~65°C
- 5-Year Warranty
-92d74c4.png/:/cr=t:23.85%25,l:0%25,w:100%25,h:52.29%25/rs=w:360,h:270.6766917293233,cg:true)

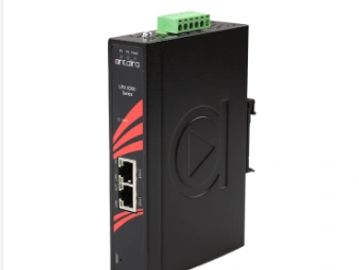

INDUSTRIAL ROUTERS
- Supports 2*10/100Base-TX LAN Ports
- Supports OpenVPN and IP Forwarding (1:1 NAT)
- Power Input: 12~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature - EOT: -35°C to 70°C
- 5-Year Warranty
INDUSTRIAL WIRELESS ROUTERS
Offers a variety of industrial IEEE 802.11 a/b/g/n wireless AP/bridge/client products that deliver reliable performance across harsh weather and environmental conditions. Our devices are resistant to electromagnetic disturbances, periods of voltage instability, extreme temperature fluctuations, as well as intense shocks and vibrations.

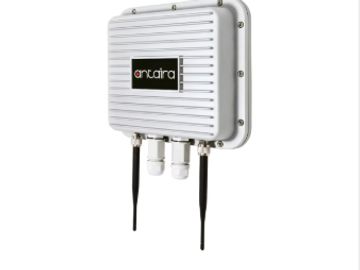

INDUSTRIAL WIRELESS ACCESS POINT
- High Speed WLAN Supports Up to 867Mbps
- Dual Band (2.4GHz/5GHz concurrent)
- Industrial MIMO Wireless Solution (Dual 2Tx/2Rx)
- Supports IEEE 802.11a/b/g/n/ac
- PD (Powered Device) IEEE 802.3af/at Compliant
- Supports Ethernet Gigabit WAN/LAN Port
- Qualcomm IPQ4029 SoC
- Tx Power 25dBm for 2.4Ghz/5GHz
- WPA, WPA2, WPA3, WEP, TKIP, AES
- IP67 Metal Housing
- Pole and Wall Mountable
- Operating Temperature Range: -40°C to 70°C
- 5-Year Warranty
.png/:/rs=w:360,h:270.6766917293233,cg:true,m/cr=w:360,h:270.6766917293233)
INDUSTRIAL WIRELESS ROUTERS
- Industrial 2x2 MIMO
- Qualcomm IPQ4029 SoC
- Supports IEEE 802.11a/b/g/n/ac
- Supports 2*10/100/1000Base-TX WAN/LAN Ports
- Tx Power 25dB for 2.4GHz
- Tx Power 24dB for 5GHz
- WPA, WPA2, WPA3, WEP, TKIP, AES
- Power Input: 9~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection
- DIN-Rail and Wall Mountable
- Operating Temperature Range – EOT: -35°C to 70°C
- 5-Year Warranty

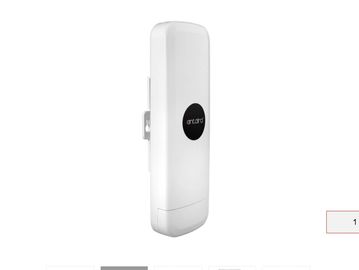

Industrial 802.11AC WIRELESS WIFI LAN BRIDGE
- High-speed WLAN Supports Up to 867Mbps
- Supports 802.11AC
- MIMO Wireless Solution (Dual 2Tx/2Rx)
- PD (Powered Device) IEEE 802.3af/at Compliant or external power
- Supports Ethernet Gigabit WAN/LAN Port
- Qualcomm QCA9563+QCA9886+QCA8334
- Up to 24dBm Tx Power
- Built in 14dBi MIMO Panel Antenna
- Pole or wall mountable
- Operating Temperature: -30°C to 45°C
- DIN-Rail or Wall Mountable
- 2-Year Warranty
___
media converters, protocol & sfp
INDUSTRIAL CONVERTERS
Offers serial to serial converters that allow users to change between RS232 and RS422/485 serial standards. A diverse range of SFP modules including fiber SFP modules, designed to establish dependable connections between fiber and optic cables, even in challenging industrial and environmental conditions.
RS232 to RS422/485 SERIAL MEDIA CONVERTER
SFP MODULES
BLUETOOTH SERIAL ADAPTER
