CLX000 : TECHNICAL OUTLINE

---

 Functionality                                   -- Data logger and real-time CAN interface (live send/receive)

LEDsLogger                                       -- Status via three externally visible LEDs

Firmware                                            -- Supports free firmware updates for adding features

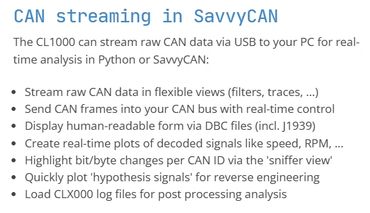

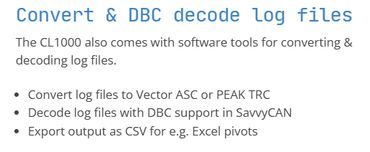

Software                                             -- Free executables for conversion to ASC/TRC [Windows/Linux]Free open

                                                                    source SavvyCAN software for streaming/analyzing CAN data + DBC

                                                                    decoding [Windows/Linux]The .INI config/ .TXT log files can also simply be

                                                                     opened in text editors or scripts [Windows/Linux]

Safety                                                   -- CE, FCC, IC, RoHS certified

 Standard                                           --  Compliant with physical layer standard ISO 11898-2

  Identifiers                                        --  Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)

  Bit Rate                                             --   Bit rates up to 1 Mbps (manually configured or automatically detected)

  Bit-rate auto-detection              -- Yes

  Protocol Support                          --  Protocol independent (i.e. able to log CAN, J1939, CANopen, OBD2)

  Filters                                                 --   Advanced message filtering on eight configurable channels

  Silent Mode                                      --   Yes (does not affect CAN-bus transmission)

   Fail-Safes                                          --   The device does not terminate the CAN-bus internally

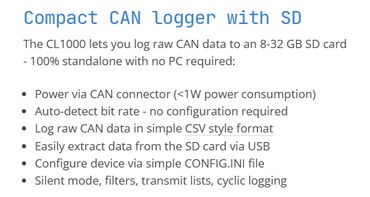

  SD Card                                              --   Replaceable 8 GB SD card (optional 32 GB)

  Real-Time Clock                             --   in CL2000

  Control Signal                                 --   Logging state (enabled/disabled) can be changed run-time using a CAN-

                                                                       bus control message

  Heartbeat Signal                           --   Supports heartbeat signal to periodically indicate logger status

  Cyclic Logging                                --    Supports cyclic logging mode (oldest log file is deleted when FS is full

  Transmit                                           --    Transmit up to 20 customized CAN bus messages (e.g. for OBD2). Full real-

                                                                       time transmit control via USB

    Frames/Second                            --  The CL1000 can log/stream ~800-1000 frames/sec without loss. For

                                                                      higher busloads, see the CANedge

 Power via CAN connector         --   Power can be supplied from the DB9 CAN connector (log/stream) or via

                                                                     USB (data extraction)

  Via CAN connector (DB9)          --   Power supplied by the CAN bus (+7.0V to +32V DC) using pin 9 (supply)

                                                                     and 3 (ground)

  Protection                                      --    Reverse voltage protection on CAN-bus supply

                                                                     Transient voltage pulse protection on CAN-bus supply

  Power via USB                             --    Power supplied by USB (+5.0V DC) for data extraction/configuration

   Consumption                              --     The logger's power consumption is approximately 1 W

 Enclosure                                        --    Robust, small enclosure

 Dimensions                                    --    66.7 x 42.7 x 23.5 mm (L x W x H)

 Weight                                              --     45 grams

 Connector                                      --     Standard D-sub 9 (DB9) connector

  USB                                                  --      Standard mini USB (B) connector for extracting data & streaming

                                                                     (cable not included)

 Temperature                                  --     Operating temperature: -20degC to +65degC
